2009 Edition Part 9 Figure 9B-6. Example of Bicycle Guide Signing

Full-size image of Figure 9B-6

Figure 9B-6. Example of Bicycle Guide Signing

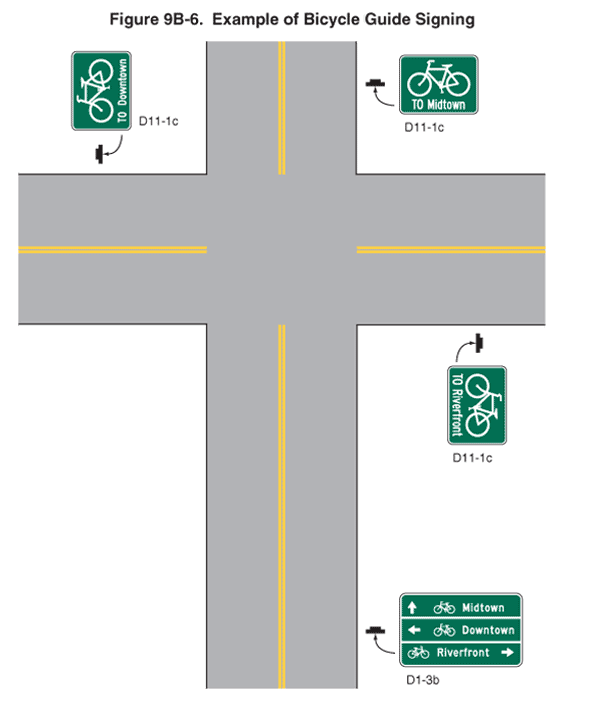

This figure illustrates an example of signing for a roadway bicycle route.

The figure shows a crossroads intersection composed of two roadways, one horizontal and one vertical. Each roadway is composed of two lanes separated by a solid double yellow line.

On the bottom half of the vertical roadway in advance of the intersection, a green D1-3b sign with three horizontal sections is shown to the right of the roadway. The top section shows a vertical arrow pointing up, a bicycle symbol, and the word "Midtown." The middle section shows a horizontal arrow pointing to the left, a bicycle symbol, and the word "Downtown." The bottom section shows a bicycle symbol, the word "Riverfront," and a horizontal arrow pointing to the right.

On the horizontal roadway to the left of the intersection, a green D11-1c sign is shown to the right of the roadway with a bicycle symbol and the words "To Downtown." On the horizontal roadway to the right of the intersection, another green D11-1c sign is shown to the right of the roadway with a bicycle symbol and the words "To Riverfront."

On the top half of the vertical roadway beyond the intersection, another green D11-1c sign is shown to the right of the roadway with a bicycle symbol and the words "To Midtown."
