2009 Edition Part 9 Figure 9C-7. Bicycle Detector Pavement Marking

Full-size image of Figure 9C-7

Figure 9C-7. Bicycle Detector Pavement Marking

This figure illustrates an example of a bicycle detector pavement marking.

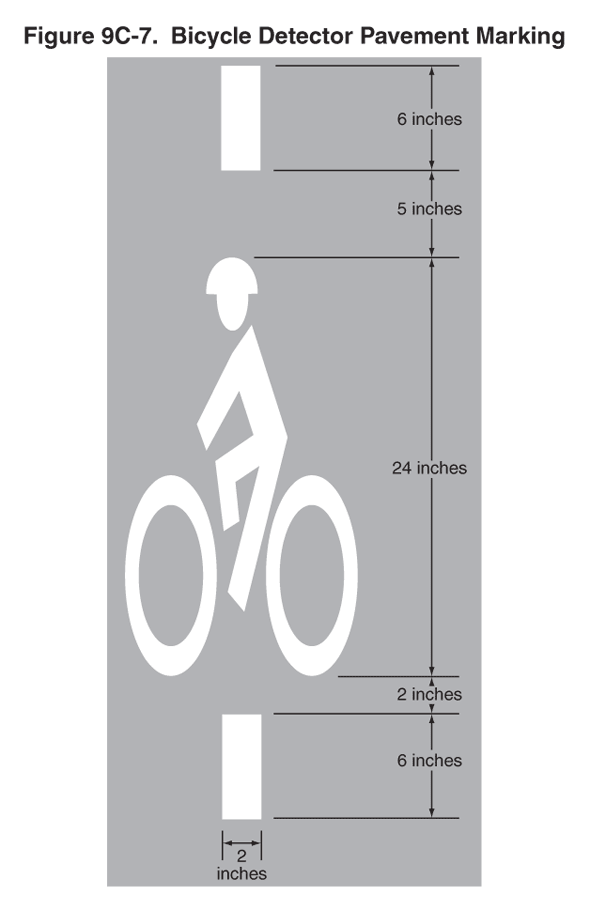

The figure shows a vertical symbol of a person wearing a helmet riding a bicycle with a vertical line segment above the symbol and one below it. The length of each vertical line segment is shown as a dimension of 6 inches and the width of each vertical line segment is shown as 2 inches. The distance from the bottom of the line segment above the symbol to the top of the symbol is shown as a dimension of 5 inches. The overall length of the symbol is shown as a dimension of 24 inches. The distance from the bottom of the symbol to the top of the vertical line segment below it is shown as a dimension of 2 inches.
