2009 Edition Part 5 Figure 5B-1. Regulatory Signs on Low-Volume Roads

Full-size image of Figure 5B-1

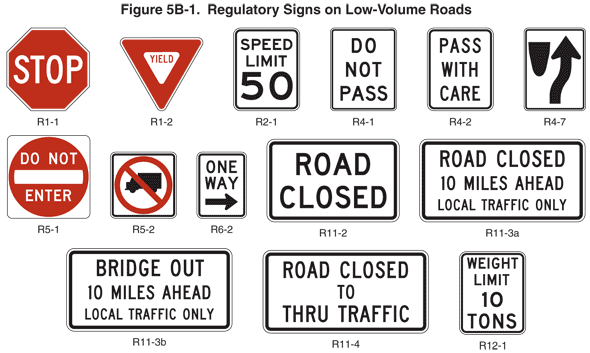

Figure 5B-1. Regulatory Signs on Low-Volume Roads

This figure shows 14 regulatory signs for low-volume roads.

R1-1 is shown as an octagonal sign with a white border and the legend "STOP" in white on a red background.

R1-2 is shown as a downward-pointing equilateral triangle with a wide red border and the legend "YIELD" in red on a white background.

R2-1 is shown as a vertical rectangular white sign with a black border and legend. The words "SPEED LIMIT" are shown on two lines above the numerals "50."

R4-1 is shown as a vertical rectangular white sign with a black border and the words "DO NOT PASS" in black on three lines.

R4-2 is shown as a vertical rectangular white sign with a black border and the words "PASS WITH CARE" in black on three lines.

R4-7 is shown as a vertical rectangular white sign with a black border and legend. At the top left corner of the sign, a depiction of the plan view of the nose of a traffic island is shown. An upward-pointing arrow is shown on the sign, curving to depict movement to the right of the nose of the island.

R5-1 is shown as a square white sign with a solid red disc in the middle. The words "DO NOT" and "ENTER" are shown in white above and below, respectively, a thick horizontal white line.

R5-2 is shown as a square white sign with a black border. A black symbol of a left-facing box truck is shown with a red circle and diagonal red slash running from the upper left to the lower right superimposed on it.

R6-2 is shown as a vertical rectangular white sign with a black border and the words "ONE WAY" in black on two lines above a right-pointing black arrow.

R11-2 is shown as a horizontal rectangular white sign with a black border and the words "ROAD CLOSED" in black on two lines.

R11-3a is shown as a horizontal rectangular white sign with a black border and the words "ROAD CLOSED 10 MILES AHEAD LOCAL TRAFFIC ONLY" in black on three lines.

R11-3b is shown as a horizontal rectangular white sign with a black border and the words "BRIDGE OUT 10 MILES AHEAD LOCAL TRAFFIC ONLY" in black on three lines.

R11-4 is shown as a horizontal rectangular white sign with a black border and the words "ROAD CLOSED TO THRU TRAFFIC" in black on three lines.

R12-1 is shown as a vertical rectangular white sign with a black border and the words "WEIGHT LIMIT 10 TONS" in black on four lines.
