2009 Edition Part 2 Figure 2J-5. Examples of Specific Service Trailblazer Signs

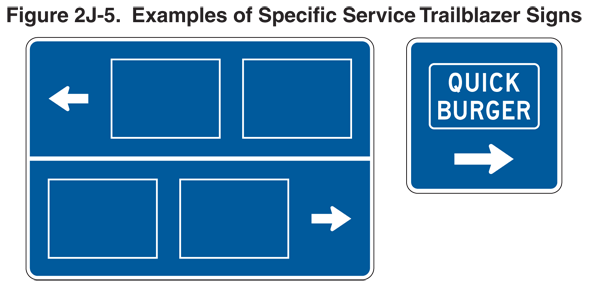

Figure 2J-5. Examples of Specific Service Trailblazer Signs
This figure shows two specific service trailblazer signs.
The first example is shown as a horizontal rectangular sign divided horizontally by a white line. On the top half, a short left-pointing horizontal arrow is shown to the left of two blank horizontal rectangular panels in one horizontal row. On the bottom half, a short right-pointing horizontal arrow is shown to the right of two blank horizontal rectangular panels in one horizontal row.
The second example is shown as a square blue sign with a white border and legend. The words "QUICK BURGER" are shown on two lines inside a horizontal rectangular panel above a right-pointing horizontal arrow.
