2009 Edition Part 2 Figure 2E-26. Examples of Interchange Exit Direction Signs

Full-size image of Figure 2E-26

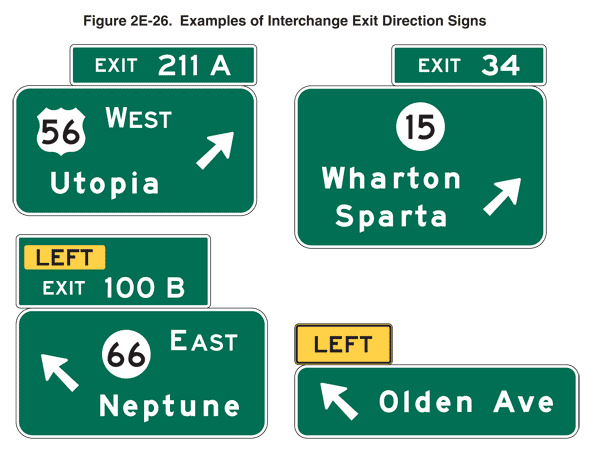

Figure 2E-26. Examples of Interchange Exit Direction Signs

This figure shows four examples of interchange exit direction signs.

All four signs are shown as horizontal rectangular green signs with a white border and legend, except as otherwise noted.

In the top left portion of the first sign, a white U.S. route shield is shown on which the black numerals "56" are shown. In the top center portion of the sign, the word "WEST" is shown. Centered below the shield and the word "WEST," the word "Utopia" is shown. On the right portion of the sign, approximately centered in the height of the sign, a diagonal arrow is shown pointing up and to the right. Above the top right portion of the sign, a smaller horizontal rectangular green plaque is shown with a white border and the words "EXIT 211 A" in white.

On the top left line of the second sign, a white disk is shown on which the black numerals "15" are shown. On the second line, the word "Wharton" is shown. On the third line, the word "Sparta" is shown. To the right of the words on the second and third lines, a diagonal arrow is shown pointing up and to the right. Above the top right portion of the sign, a smaller horizontal rectangular plaque is shown with the words "EXIT 34."

On the top line of the third sign, a white disk is shown on which the black numerals "66" are shown to the left of the word "WEST." On the second line, the word "Neptune" is shown. To the left of the disk and word on the first and second lines, a diagonal arrow is shown pointing up and to the left. Above the top left portion of the sign, a smaller horizontal rectangular green plaque is shown with the word "LEFT" in black letters on a horizontal rectangular yellow panel on the top line and the words "EXIT 100 B" in white on the bottom line of the plaque.

On the fourth sign, a diagonal arrow pointing up and to the left is shown to the left of the words "Olden Ave" all on one line. Above the top left portion of the sign, a smaller horizontal rectangular yellow plaque is shown with the word "LEFT" in black letters and border.
