2009 Edition Part 2 Figure 2D-2. Arrows for Use on Guide Signs

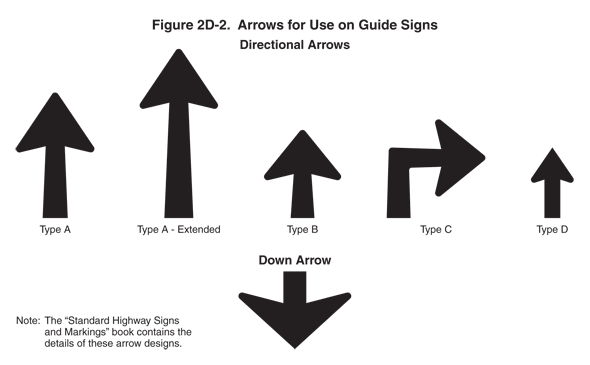

Figure 2D-2. Arrows for Use on Guide Signs
This figure shows six arrows for use on guide signs.
A note states: "The 'Standard Highway Signs and Markings' book contains the details of these arrow designs."
The heading "Directional Arrows" is shown above the first five arrows.
Type A is shown as an upward-pointing vertical black arrow.
Type A Extended is shown as an upward-pointing vertical black arrow with a longer shaft.
Type B is shown as an upward-pointing vertical black arrow with a shorter shaft.
Type C is shown as a right-angle black arrow pointing up and to the right.
Type D is shown as a shorter and narrower version of Type B.
The sixth arrow is shown as a downward-pointing vertical black arrow with a short shaft. It is labeled "Down Arrow."
