2009 Edition Part 2 Figure 2D-1. Examples of Color-Coded Destination Guide Signs

Full-size image of Figure 2D-1

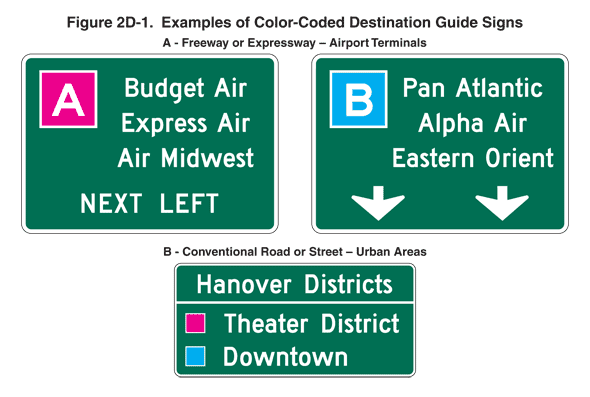

Figure 2D-1. Examples of Color-Coded Destination Guide Signs

This figure shows three examples of color-coded destination guide signs.

The heading "a. Freeway or Expressway – Airport Terminals" is shown above the first two signs.

The first sign is shown as a horizontal rectangular green sign with a white border and legend. In the upper left quadrant of the sign, a square pink panel is shown with a white "A" on it. To the right of the pink panel, the words "Budget Air," "Express Air," and "Air Midwest" are shown on three lines. The words "NEXT LEFT" are shown centered horizontally on the bottom line.

The second sign is shown as a horizontal rectangular green sign with a white border and legend. In the upper left quadrant of the sign, a square blue panel is shown with a black "B" on it. To the right of the blue panel, the words "Pan Atlantic," "Alpha Air," and "Eastern Orient" are shown on three lines. Two downward-pointing short white arrows are shown centered horizontally on the bottom line.

The heading "b. Conventional Road or Street – Urban Areas" is shown above the third sign.

The third sign is shown as a horizontal rectangular green sign with a white border and legend. On the top line, the words "Hanover Districts" in white above a horizontal white line that extends across the width of the sign. Below the dividing line on the second line, a pink square is shown to the left of the words "Theater District" in white. On the third line, a blue square is shown to the left of the word "Downtown" in white.
